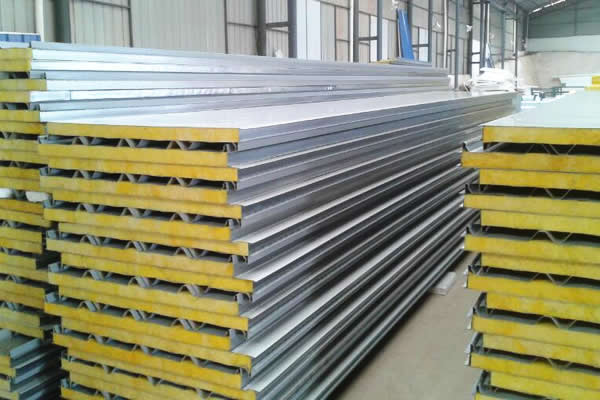

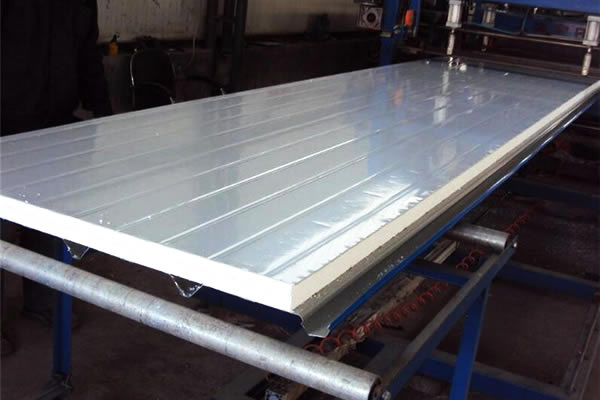

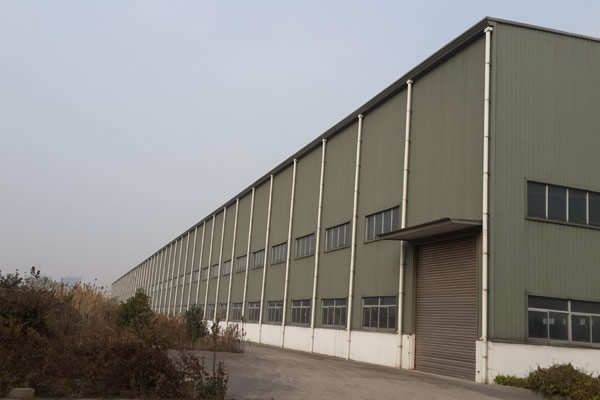

Glass wool prefabricated sandwich panel consists of glass fiber and 2 layers of steel sheets. Glass wool prefabricated sandwich panel is excellent choice for heat insulated roof and wall cladding of industrial and commercial buildings.
Product Parameter of Glass wool prefabricated sandwich panel
||a) Surface/base plate material:
Prepainted galvanized steel sheet
Galvanized steel sheet
Galvalume steel sheet
|b) Core material: Fiber Glass/Glass Wool
||a) Thickness of Surface/base plate: 0.12mm-3.0mm
|b) Thickness of Core: 50/75/100/125/150/200 mm

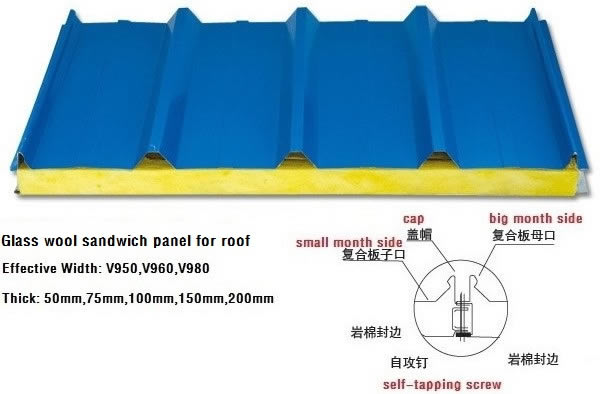

||For Roof: 960mm, 980mm
|For Wall: 950mm
Characteristics of Glass wool prefabricated sandwich panel
Heat insulation capability.
The heat insulation capability of the Glass wool prefabricated sandwich panel depends on the specifications of the filling material.
Good fire performance.
Glass wool prefabricated sandwich panel is fire rating of non-combustible A grade. Its shape, strength and material are hard to be changed in the fire, it can protects your valuable life and properties.
Sound insulation and Sound absorption capability.
Sound insulation is a physical value what shows the rate of sound energy decrease on the one side of a surface (e.g. wall or roof cladding), while the noise source is on the other side.
Sound absorption values of panels can be increased by applying perforated internal armouring and mineral wool insulation core.
