Triple wide steel carports can be built as a carports shelter, partially enclosed or fully enclosed metal garages. triple wide carports provide a way for more than one vehicle or a substantial amount of valuable equipment. These expanded size metal shelters offer far more coverage than a traditional metal carport. Sanhe offers a huge variety of sizes for triple wide carports to serve every possible coverage need, as well as being able to meet your design aesthetic with several custom options.
Three different roof lines are available, including the following attractive options:
1、The Regular Style roof is a traditional option with slight overhang at the edges.
2、The Boxed Eave Style offers a clean look in a simple V shape.
3、The Vertical Roof Style is an advantage for areas with heavy snow, rain, slush, or other precipitation. The design of this roof style, which appears very similar to the Boxed Eave Style, allows slush and snow to run right off of the roof instead of getting caught in design crevices.

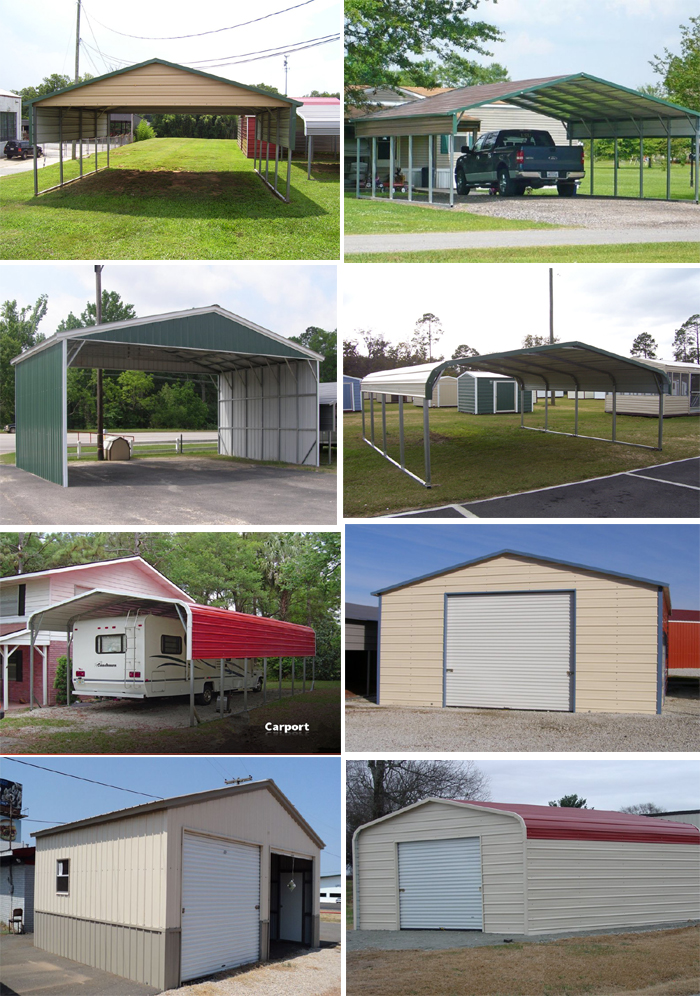

Three type can be choose :Regular style steel carport 、A frame style steel carport/ boxed eave steel carport、Vertical Roof Style Steel Carports
Regular style steel carport

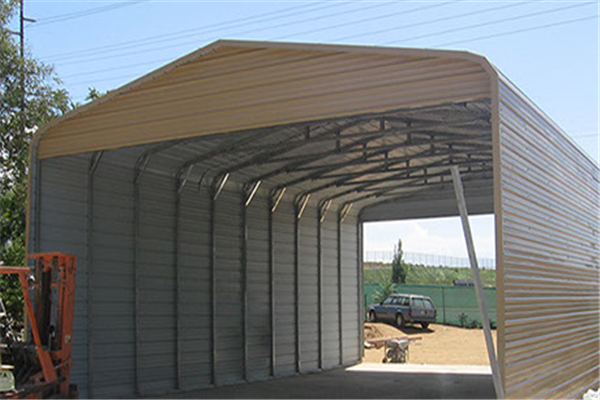

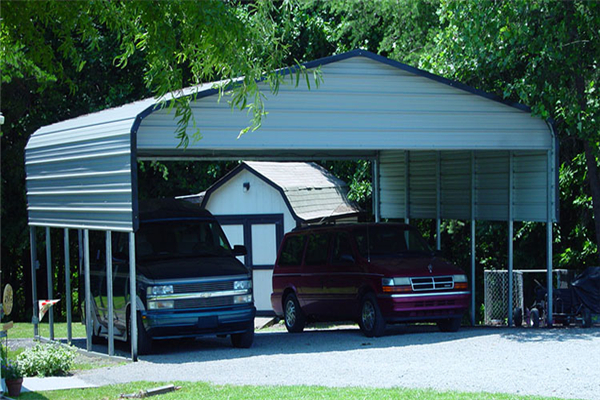

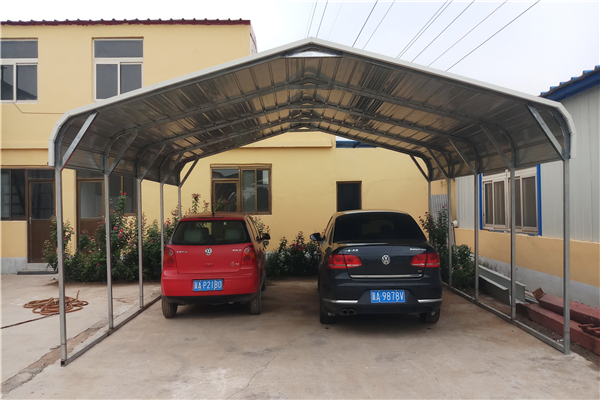

regular carports feature a horizontal application of the panels with rounded eaves so sides can extend down to the ground in an unbroken pattern if that’s what you want.regular style steel carport is most economical option is best for areas that don’t experience heavy winds or lots of rain.

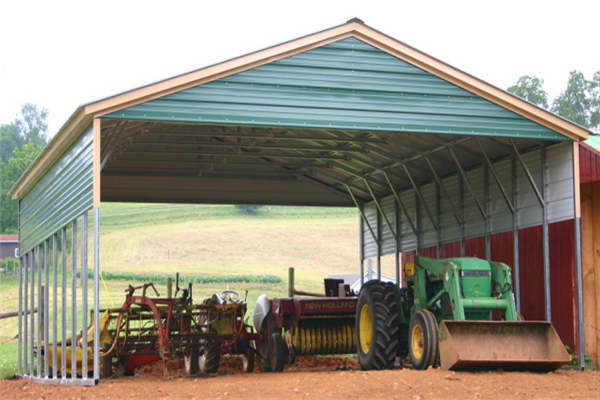

A frame style steel carport/ boxed eave steel carport
boxed eave carports feature a horizontal application of the panels with A frame roof .
A gable end panel is available for this model, as are additional side panels for one or both sides for better protection. This image shows one optional side panel on each side.
This steel carport must have the various trims such as ridge cap, gable and eave trim which adds to the installation and the cost but its looks blend well in residential settings.

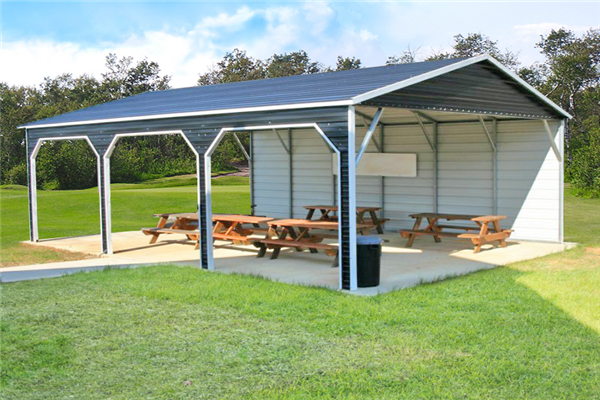

Vertical Roof Style Steel Carports
The Vertical Roof Style Steel carport’s main distinction from the Regular style is the vertical panel application which makes it the most compatible for shedding snow. When customers are in an area that exceeds a 45 psf snow load, we recommend the Vertical Roof Style carport.This style carport more suitable for large span steel carport.
Vertical Roof Style Steel Carports are the best storage option to protect your automobiles from heavy rains, snow and hail.
Vertical Roof vs. Boxed Eave: What’s the Difference?
The main difference between boxed-eave carports and vertical-roof carports is that on the boxed-eave carports, the roof sheeting runs horizontal, length to length, and on vertical-roof carports, the roof sheeting runs vertical, or up and down, which helps the snow slide off. But no matter which roof design you choose, you won’t have to worry about getting up early to remove snow from your car in inclement weather. Our boxed-eave carports offer your vehicles protection from harsh elements and may help to prolong the life of your vehicle.
Steel frame system
Our steel carport are use galvanized steel tube as the whole structure, which is not only strong and durable, but also more convenient for assembly and disassembly . It means you won’t have cumbersome I-beams to deal with that require forklifts or cranes.In addition, this steel frame will saving tremendously on your concrete foundation requirements
Our steel carport is use corrugated steel sheet.
If you want engineered plans for your metal building, carport, or other metal structure, we can help you.
Sanhe steel structure has very experienced designers and engineers, can meet all the requirements,So please don't hesitate to tell us your requirements and ideas.
Installation & construction
They are designed to use a minimum of components, most of them modular and prefabricated. They are easirely assembled by people without experience using common tools. We make them that way for the do-it-yourselfer and also for the professional installers throughout the people who perform installations for our customers.
"Shijiazhuang Sanhe Steel structure Co., LTD." is professional manufacturer who is devoted to steel structure construction. We provide the whole set of services include making construction designs, producing products and installation.
We are located in Shijiazhuang city, Hebei province.
There are 8 production lines of steel structure and 26 production lines of corrugated steel sheet.
The annual output of steel structure components is 8000 tons;
The annual output of color steel sheet is 7000 tons;
The annual output of galvanized steel sheet is 2000tons.
Which generates an annual revenue of RMB60,000,000 and the number is increasing year by year !
Strength Makes the Future!!!
Fast assemble and easy installation,convenient fitting replacements !
Do I need to get a permit?
It is up to you to check with your local county/town and building permit office to see what permits are required. You are required to obtain any and all permits that may be required as the codes vary from state to state and county to county. Also please make sure the location where you want to place it is ok and meets your set back requirements.
How long does it take a carport to be installed?
Most small size metal carports can be installed in a few hours. Larger carports or partially enclosed carports may take a half of a day or the better part of a day to be installed.
Most of the metal garages take 1 day to install. The larger sizes metal garages may take up to 2 days to install.
Difference between regular, boxed & vertical roof carports & metal garages?
The regular style is the most affordable and is rounded on the sides. The boxed eave and vertical styles look exactly the same except the roof sheeting on the boxed runs length wise and on the vertical roof style the sheeting runs up and down allowing snow to slide off on the vertical roof style. The vertical roof style is the strongest style. In order to have the roof sheeting go up and down on the vertical style there are metal cross braces that the roof sheeting is attached to which makes the vertical style even stronger but due to the materials and time it is the most costly of the 3 styles.
Can carports be made in a custom width or length?
Yes. We can customize a carport’s size, but we charge the customer the price of the next larger standard size carport. So for example, let’s say you need a carport 17' wide and the standard size widths are either 12' wide or 18' wide. We have to price it as an 18' wide carport. This same rule applies on the length. If you need the length to be 24' long and the 26' long is too long we can make the base 24' long but we’ll charge you the price of a 26' long carport. When figuring out the size of your carport, you should consider that when we say 26' long that includes a 6" overhang on the front and back ends making the exact base 25' long.
The most narrow carport available is 10' wide which would be priced as a 12' wide.
How Do I Order My Metal Garage?
Orders can be placed online or over the phone by calling 86-311-89607789 or send Email by email@example.com.
