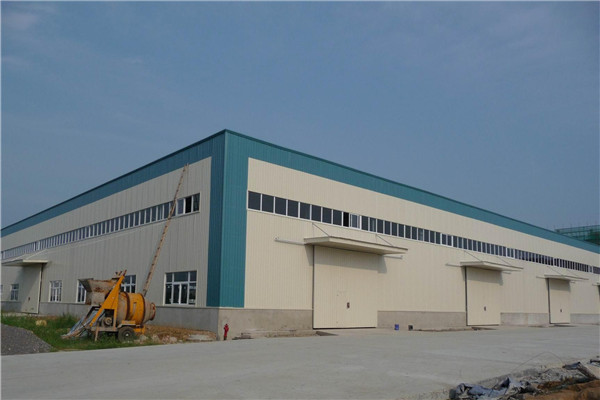

Prefab Steel Structure Warehouse formed by Steel Coloum , Steel Beam ,Bracing ,Purlin , all the Steel Structure Fabricated in Workshop and delivery to Project site , quickly installation , green building and save manpower .
Prefab Metal Shed Materials as following :
1. The main frame including Steel columns and Roof beam are made of welded H-section steel ,steel grade are Q235B,Q345B
2. The steel columns are connected with the foundation by pre-embedding anchor bolt.
3. The beams and columns, beams and beams are connected with 10.9S high intensity bolts.
4. The envelope construction net is made of cold form Galvanized C-style purlins.
5. The Bracing system used to enlarge the stability of workshop which including roof bracing , wall bracing , fly bracing and tied bar
6. The wall and roof are made of color steel board or color steel sandwich panels, which are connected with the purlin by Self-tapping screws
Prefab Steel Structure warehouse could used for a wide range of project needs – from commercial (Car Shed ,Exhibition Hall ) to agricultural (metal barns, storage sheds) to industrial (Workshop, equipment storage).
Lower cost and maintenance
Long using time up to 50 years
Stable and earthquake resistance up to 9 grade
Fast construction, time saving and labor saving
-Professional design and engineering team: Full solution for steel structure design.
-Procurement and Manufacture for all material for prefabricated building. We have a professional procurement team to make sure all the materials are with good quality.
-Site management & Installation supervision, We could send our engineers to help for the installation supervision, you just need to prepare a team which know normal construction works willbe OK.
1.Common type of the industrial building?
Reply: Portal frame is the usual type in the industrial workshop and warehouse shed. Other types also could be designed and manufacturer as per clients’ request.
2.What’s the quality grade of the steel structure components?
Reply: Q345 is used for main steel structure, Q235 is used for secondary steel structure.
3.How about the delivery time?
Reply: Usually,within 45-60 days after the order confirmed, also depends on the fabrication quantity.
4.How about the derust grade?
Reply: Ball blasting Sa 2.5 on main steel structure ;
manual derust St2.0 on secondary steel structure.
5.What kind panel used for the roof and wall?
Reply: Color corrugated steel sheet and sandwich panel could be used. Sandwich panel performs well on the heat insulation,sound insulation.Common sandwich materials are EPS,glass wool,rockwool and PU.
6.How to install it?
Reply: We will furnish you the detailed construction drawing and the construction manual which could help you to erect and install the building step by step. We also could send the engineer to your local to help you if needed.
Reply: Finish paint need be done after the frame installed, and do it again after 6-8 months.So the surface will stay more time.
